DC Drive – 1/3 hp, 24 V dc Input, dc, 24 V dc Output, Non-Regenerative, IP-00 Rated, Chassis | 0789

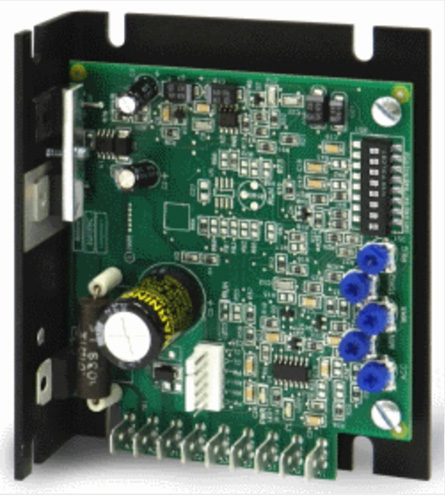

0789 CONTROLLER Input Voltage Range: 12-14 VDC or 24-35 VDC (dependent on model) Back EMF feedback maintains 1% speed regulation with most DC motors DIP switches to easily calibrate control for different gearmotor/motor sizes Two diagnostic LEDs indicate when power is on and when current output is at limit set by TORQ pot Five on-board user-adjustable pots for torque limit, min/max speed limit, acceleration time, and speed regulation Speed can be adjusted manually using a 10k-Ohm speed pot (included with control) or via 0-5 VDC remote analog signal Connections for optional user-supplied inhibit switch
