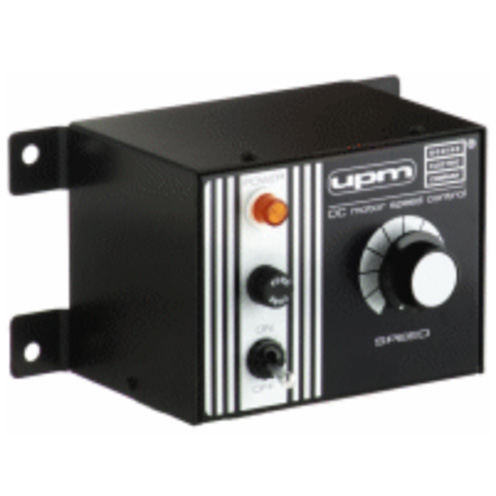

DC Drive – 1/5 hp, 115 V ac Input, 1 ph, 130 V dc Output, Non-Regenerative, IP-10 Rated, 50/60 Hz, NEMA 1 | 0867

0867 SCR DC CONTROL Operates from 115 Volt AC line Line voltage compensation minimizes speed drift NEMA 1 enclosure for environmental protection Back EMF feedback maintains better than 2% speed regulation Dip switches to easily calibrate control for different motor sizes Two diagnostic LEDs indicate when power is on and when current output is at limit set by TORQ pot Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, deceleration time, and speed regulation Speed can be adjusted manually using speed pot mounted on enclosure Terminal block inside enclosure for quick motor connection Fuse holder for line on front panel Toggle switch on enclosure to turn AC power on/off Lamp on enclosure indicates AC power on Factory installed AC line cord Unfiltered drive draws lower AC line current than comparable SCR filtered controls Connections for optional user-supplied inhibit switch
