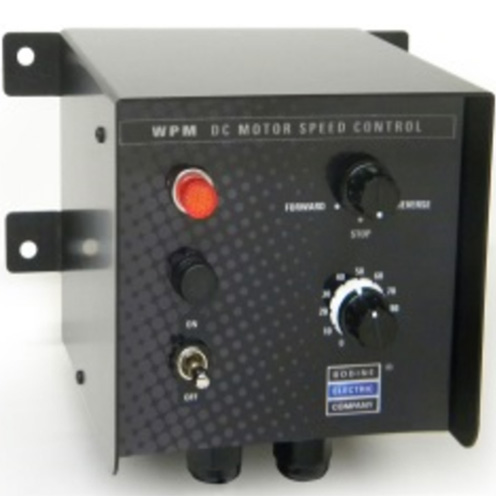

DC Drive – 7/16 hp, 5/8 hp, 115 V ac Input, 1 ph, 130 V dc Output, Non-Regenerative, IP-10 Rated, 50/60 Hz, NEMA 1 | 0794
Original price was: $608.35.$60.00Current price is: $60.00.
0794 CONTROLLER Input 115 VAC, 50/60 Hz, 1-phase. Output 0-130 VDC Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range Forward-Brake-Reverse (FBR) switch for dynamic braking DIP switches to easily calibrate control for different motor sizes Two diagnostic LEDs on control board NEMA 1 enclosure for environmental protection Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation Speed can be adjusted manually using speed pot mounted on enclosure Terminal block inside enclosure for motor connection Back EMF feedback maintains better than 2% speed regulation Fuse holder for line on front panel Toggle switch on enclosure indicates AC power on Factory installed AC line cable
