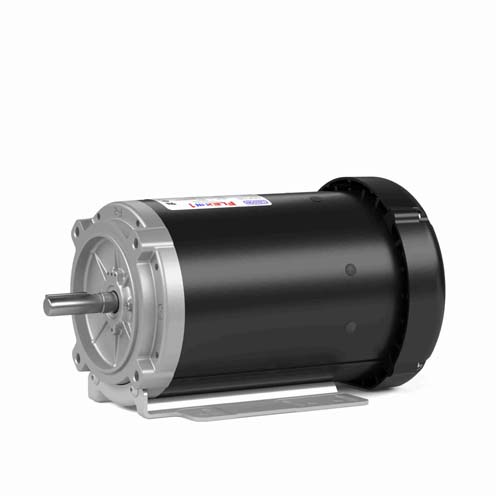

General Purpose Motor – 1200 rpm / 1000 rpm, 3 ph, 230/460 V, 190/380 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Continuous | FX12BK006

FX12BK006 1/2HP, 1200RPM, 56C, 3PH, 60HZ One FLEX-IN-1 motor replaces 18 general purpose motors The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3 Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC). Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option *** Kits sold separately. Light assembly required. Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
