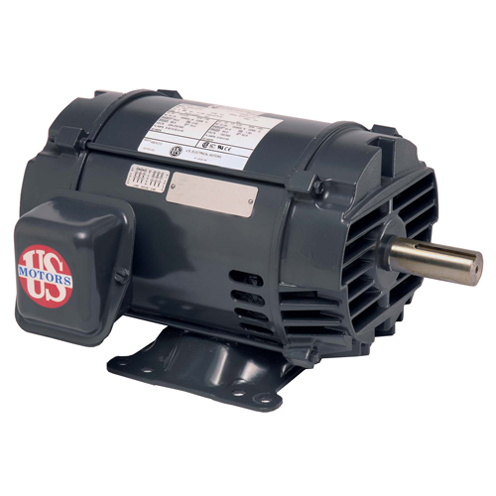

General Purpose Motor – 5 hp, 1800 rpm, 3 ph, 190/380//208-230/460 V, 184T Frame, ODP (Open Drip-Proof) Enclosure, 50/60 Hz, 1440 rpm – 1755 rpm Base, Horizontal / Foot Mount, Continuous Duty

5 HP,1765 & 1450 RPM,D5P2D,208-230/460 & World Motor features except where noted Class F insulation, Class B rise at service factor Rolled steel frame 56–320, cast iron frame 360–440 Aluminum end shields 56–250, cast iron end shields 280440 “CE” mark on nameplate (140 frame and larger) 40°C ambient, NEMA Design B Performance on 60 Hz sine wave power 1.15 service factor Regreasable bearings 180 frame and up Double shielded bearings 140–400, open on 440 Bearing caps on 400 and 440 frames F1 assembly position except where noted Lifting provisions 210 frame and up Applications: For use in pumps, fans, compressors, material handling and other general-purpose applications where contaminants are minimal
